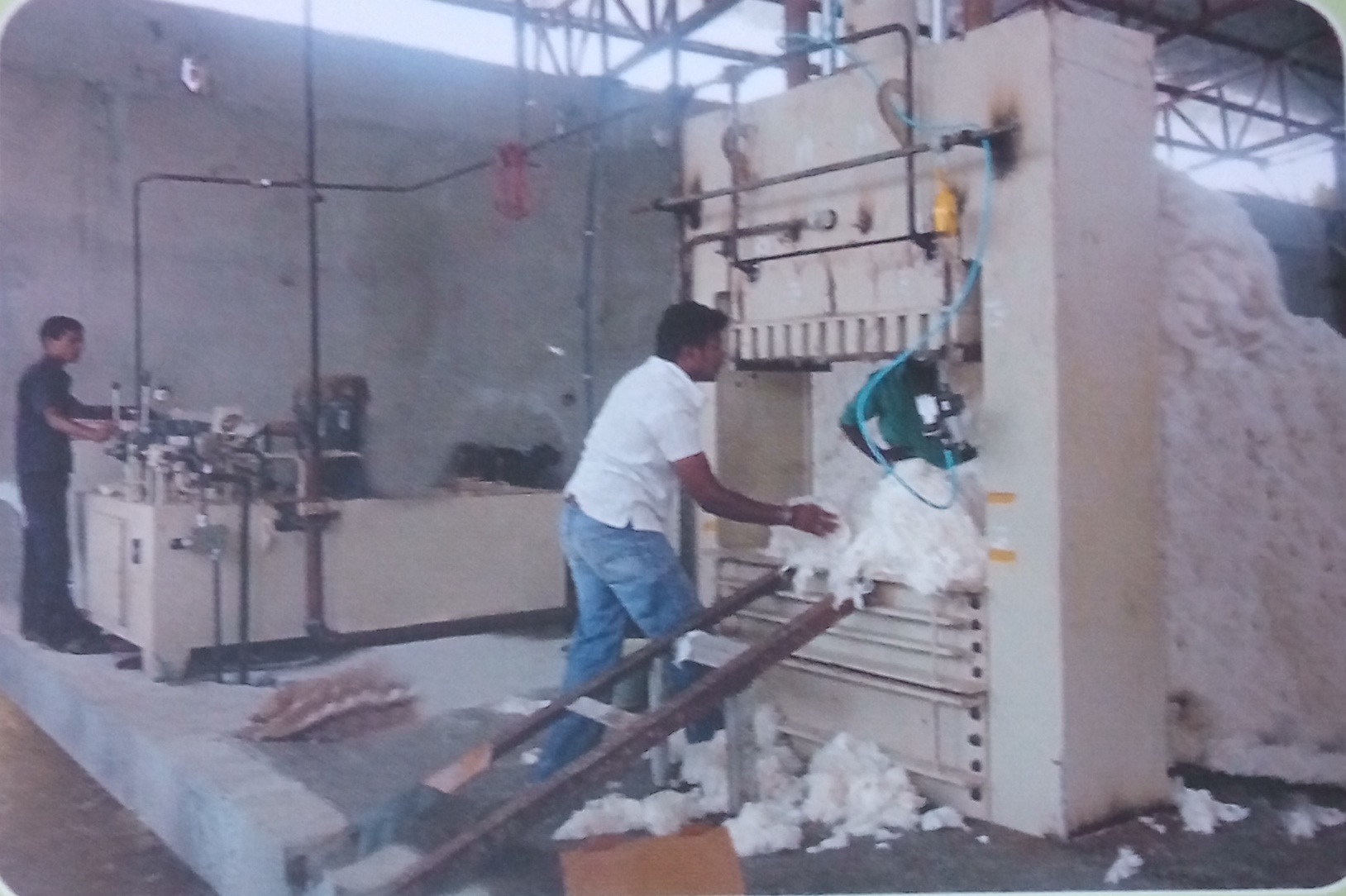

SINGLE STAGE DOORLESS TYPE COTTON BALING PRESS WITH AUTO TRAMPER UNIT
Approved by TMC
New model of single stage high density up stocking (3 Ram)
hydraulic cotton baling press equipped with the following.
Labour requirement is 3 Nos. Only.
- Heavy Duty Single Press
- Hydraulic Auto Tramper Unit
- Hydralic Doorless Cylinder Unit
- Hydralic Power Pack Unit
- Electrical Motors & Control Panel
- Lint Slide Pusher Mechanism With Feeder Cylinder Unit (optional)
Model : SH (3 RAM)
|
| MODEL | OUTPUT | ELECTRIC MOTOR | BALE SIZE | BALE WEIGHT |
|---|---|---|---|---|
| SH 40 10 | 10 Bale / Hr | 40 HP | 48" X 18" X 18" | 160 to 180 kg |
| SH 40 14 | 14 Bale / Hr | 40 HP | 48" X 18" X 18" | 160 to 180 kg |

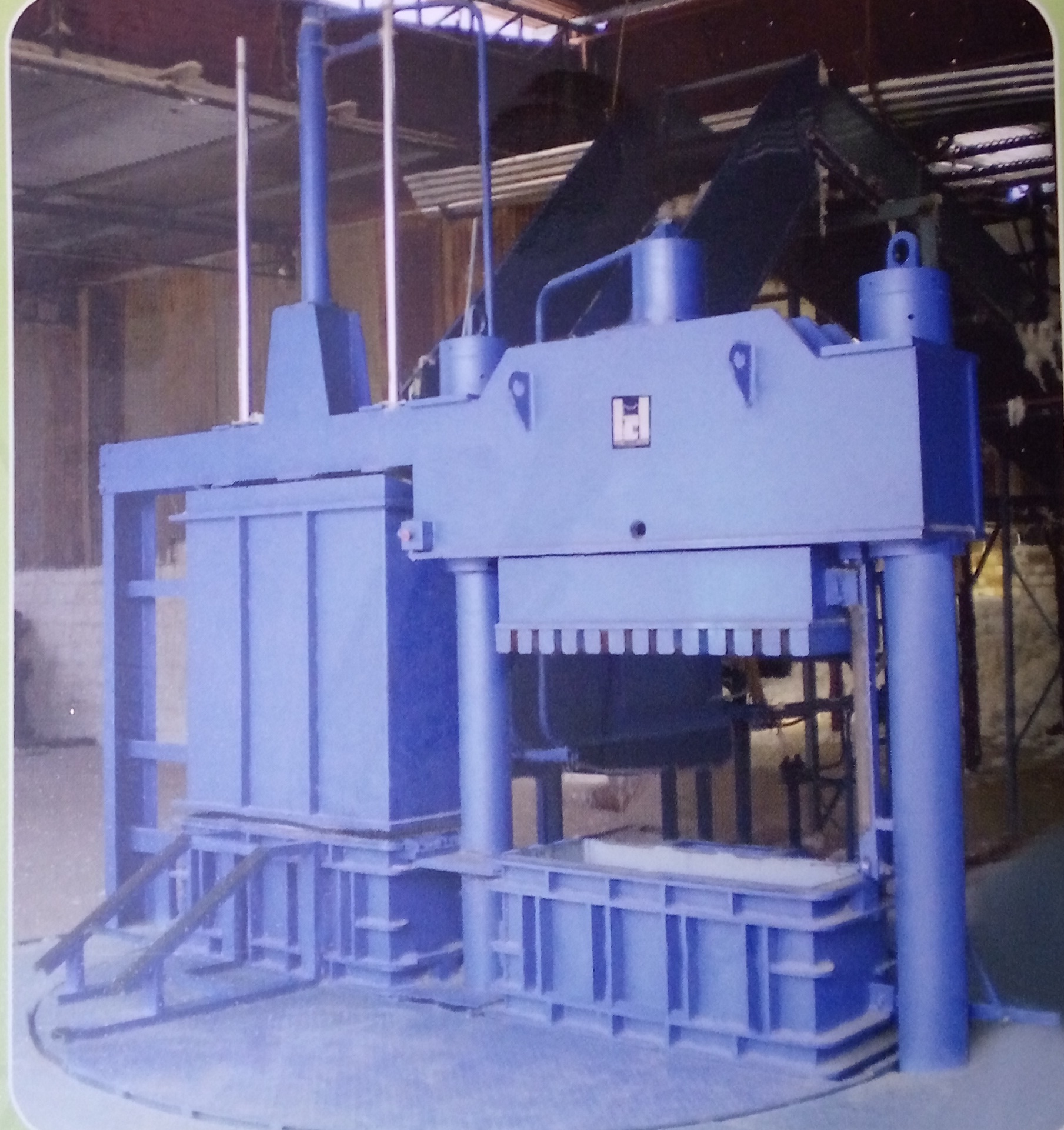

REVOLVING DOORLESS COTTON BALING PRESS WITH AUTO TRAMPER UNIT
Approved by TMC
Double Chamber high density up - stroking, revolving
doorless type hydralic cotton baling press consisting of
two revolving chambers. One for tramping, the other for
compressing & strapping.
The chamber rotates hydraulically after each cycle. Labour
requirement is 3 Nos. only.
The Pressing machine is equipped with the following
- Revolving Chanmber With Circular Platform
- Hydraulic Auto Tramper Unit
- Hydralic Doorless Cylinder Unit
- Hydralic Power Pack With Electric Motors
- Electrical Control Panel
- Lint Slide Pusher Mechanism
- Heat Exchanger Unit
Model : RP
|
| MODEL | OUTPUT | ELECTRIC MOTOR | BALE SIZE | BALE WEIGHT |
|---|---|---|---|---|
| RP 70 12 | 20 - 24 Bale / Hr | 70 HP | 48" X 18" X 18" | 165 to 180 kg |
| ERP 50 10 | 10 - 12 Bale / Hr | 50 HP | 48" X 18" X 22" | 165 to 180 kg |

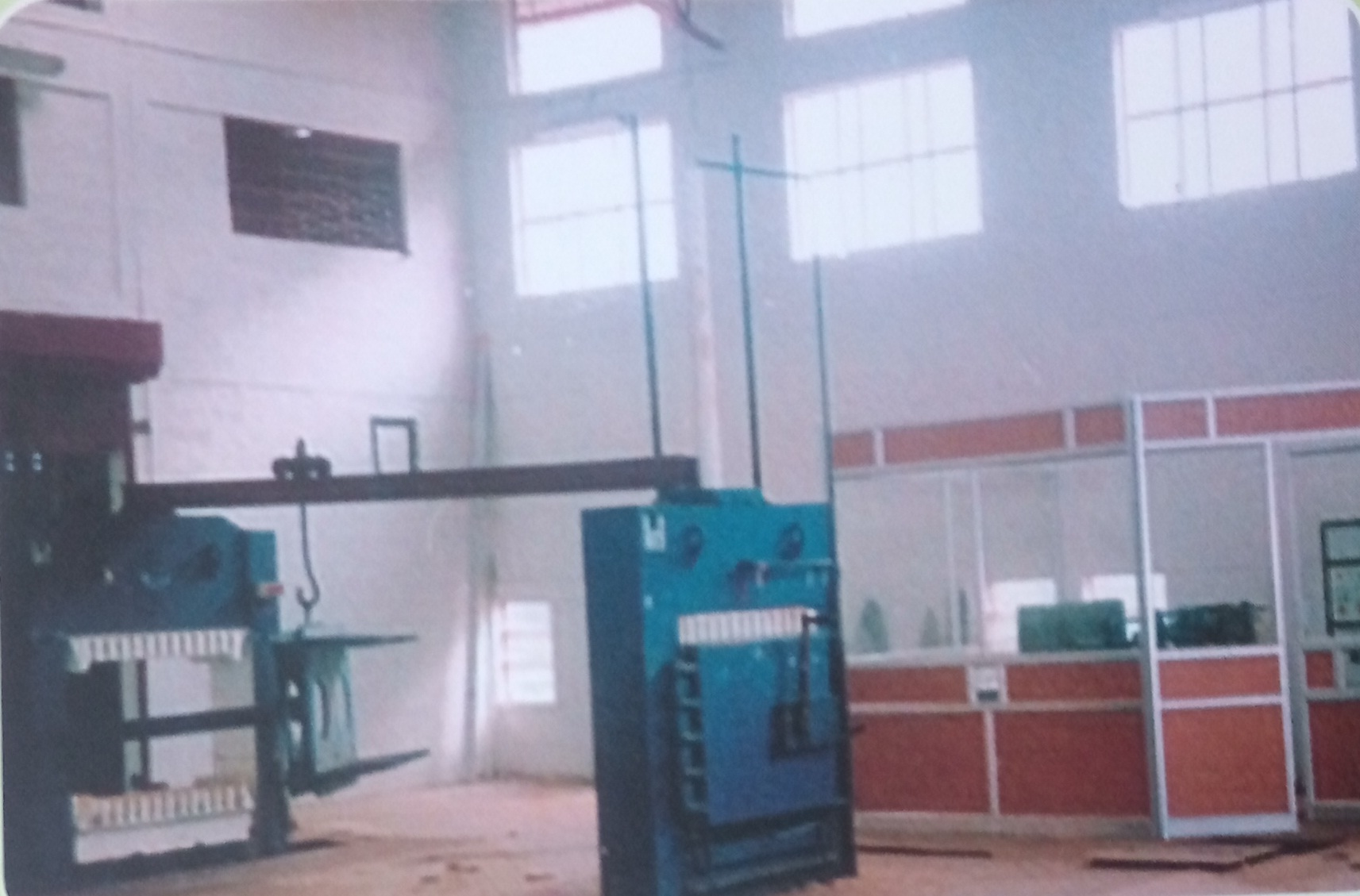

DOUBLE STAGE COTTON / cOIR BALING PRESS WITH AUTO TRAMPER UNIT
Double stage up - stroking hydraulic
cotton baling press consists of the following
Labour requirement is 6 Nos. Only.
- Pre Press & Final Press
- Hydraulic Auto Tramper Unit
- Hydralic Doorless Unit (optional)
- Hydralic Power Pack With Electric Motors
- Electrical Control Panel
- Lint Slide Pusher Mechanism (optional)
- Pincher Unit
Model : DP
|
| MODEL | OUTPUT | ELECTRIC MOTOR | BALE SIZE | BALE WEIGHT |
|---|---|---|---|---|
| DP 30 14 | 18 Bale / Hr | 40 HP | 48" X 18" X 18" | 165 to 180 kg |
| DP 40 14 | 22 Bale / Hr | 40 HP | 48" X 18" X 18" | 165 to 180 kg |
| DP 50 16 | 24 Bale / Hr | 50 HP | 48" X 18" X 18" | 165 to 180 kg |

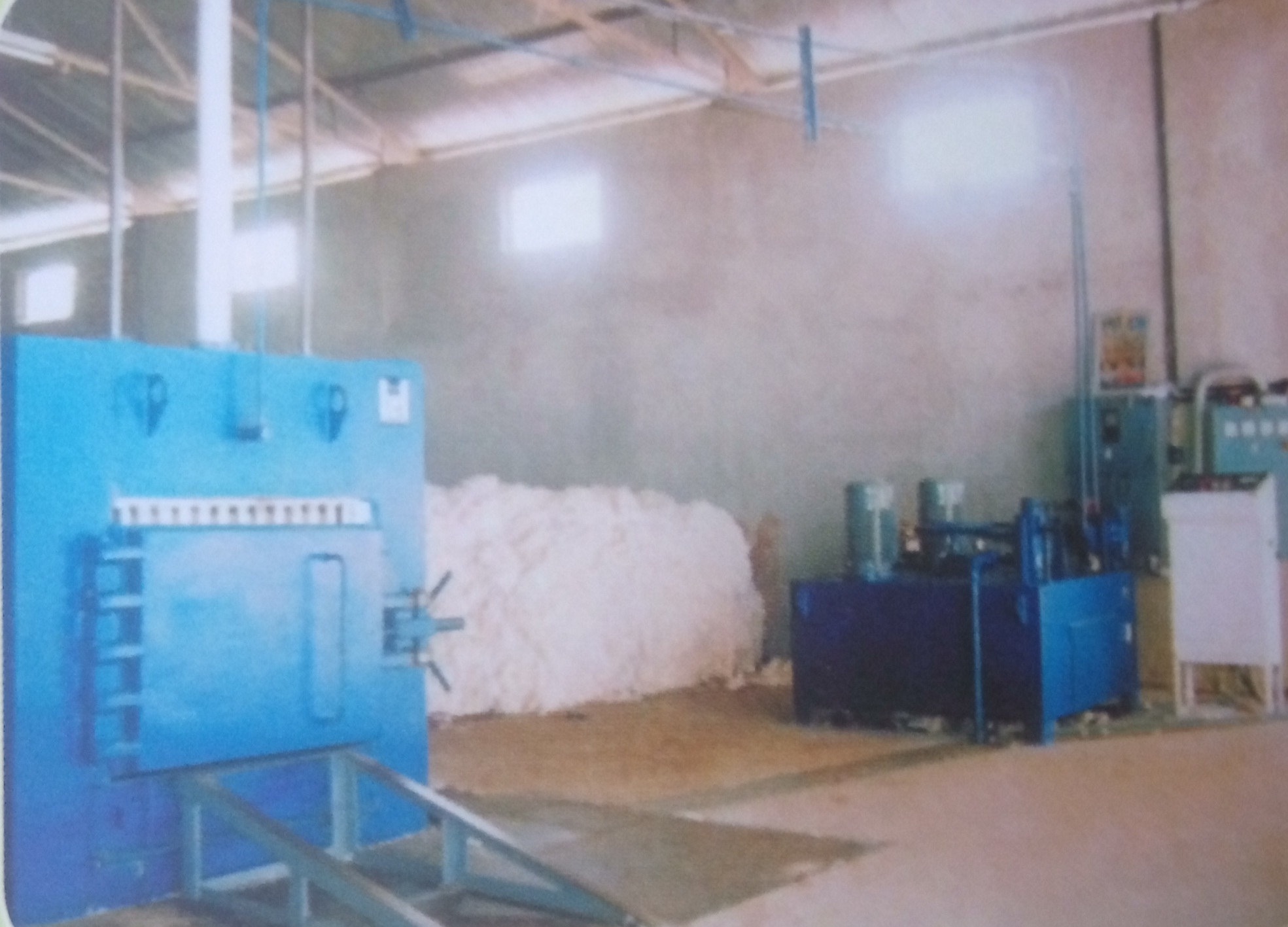

SINGLE STAGE DOORLESS COTTON / COIR BALING PRESS WITH AUTO TRAMPER UNIT
Approved by TMC
Sinlge stage up - stroking hydraulic pressing
eliminates removal of pre pressed bale and
carrying to final press for pressing & strapping.
Labour requirement is 4 Nos. Only.
The press machine is equiped with the
follwing
- Single Press
- Hydraulic Auto Tramper Unit
- Hydralic Doorless Cylinder Unit (optional)
- Hydralic Power Pack With Electric Motors
- Electrical Control Panel
- Lint Slide Pusher Mechanism (optional)
Model : SPD
|
| MODEL | OUTPUT | ELECTRIC MOTOR | BALE SIZE | BALE WEIGHT |
|---|---|---|---|---|
| SPD 20 08 | 6 Bale / Hr | 20 HP | 48" X 18" X 21" | 165 to 170 kg |
| SPD 30 10 | 10 Bale / Hr | 30 HP | 48" X 18" X 21" | 165 to 170 kg |
| SPD 40 14 | 14 Bale / Hr | 40 HP | 48" X 18" X 21" | 165 to 170 kg |
SINGLE STAGE FLOOR MOUNTING COTTON BALING PRESS
Approved by TMC
New model of single stage floor mounted down stroking
hydraulic cotton baling press equipped with the following.
- Heavy Duty Single Press
- Hydraulic Auto Tramper
- Lint Slide Pusher Mechanism With Feeder Cylinder
- Hydralic Power Pack
- Electrical Motors and Control Panel (PLC / Logic Control)
Model : SP
| MODEL | OUTPUT | ELECTRIC MOTOR | BALE SIZE | BALE WEIGHT |
|---|---|---|---|---|
| FM 40 06 | 6 Bale / Hr | 40 HP | 48" X 18" X 21" | 160 to 170 kg |

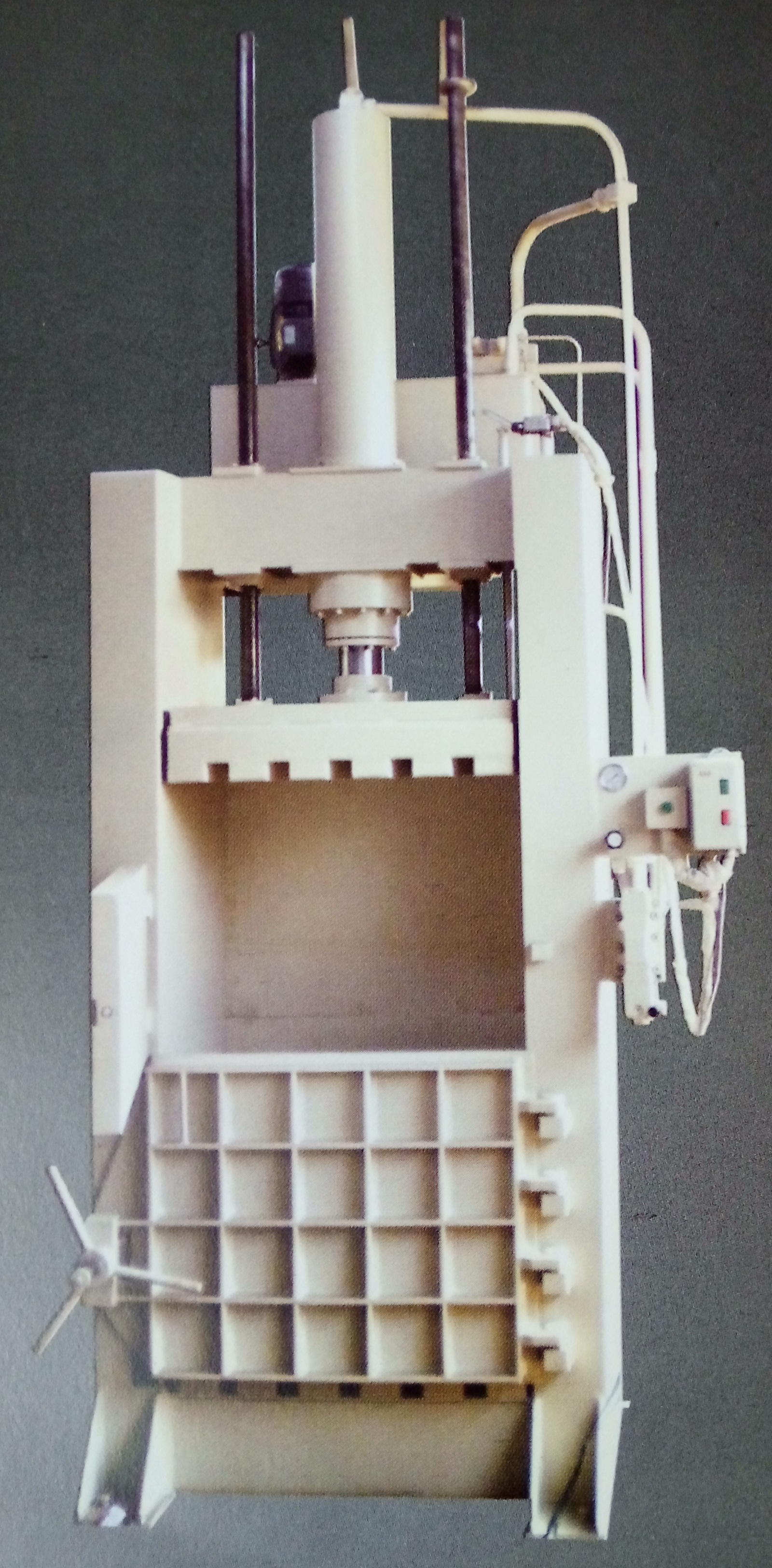

WASTE PAPER / PET BOTTLE BALING PRESS (WITH / WITHOUT BALE PUSHER)
SUITABLE FOR BAILING
- Waste Cotton
- Waste Paper
- Fibre
- Hay
- Pet Bottles
- Coir
- Cement Bags etc.
|
| MODEL | OUTPUT | ELECTRIC MOTOR | BALE SIZE | BALE WEIGHT (DEPENDS UPON MATERIAL) |
|---|---|---|---|---|
| PB 050 | 4 to 6 Bales / Hr | 5 HP | 32" X 24" X 18" to 20" | 90 to 100 Kgs |
| PB 075 | 5 to 7 Bales / Hr | 7.5 HP | 32" X 24" X 18" to 20" | 100 to 110 Kgs |
| PB 100 | 6 to 7 Bales / Hr | 10 HP | 32" X 24" X 18" to 20" | 100 to 110 Kgs |
OTHER PRODUCTS
- ANY KIND OF BALE PRESS.
- HYDRAULIC PRESSES FOR VARIOUS APPLICATION.
- HYDRAULIC JACKS, CYLINDER UNITS.
- HYDRALIC POWER PACKS, AND EQUIPMENTS.
